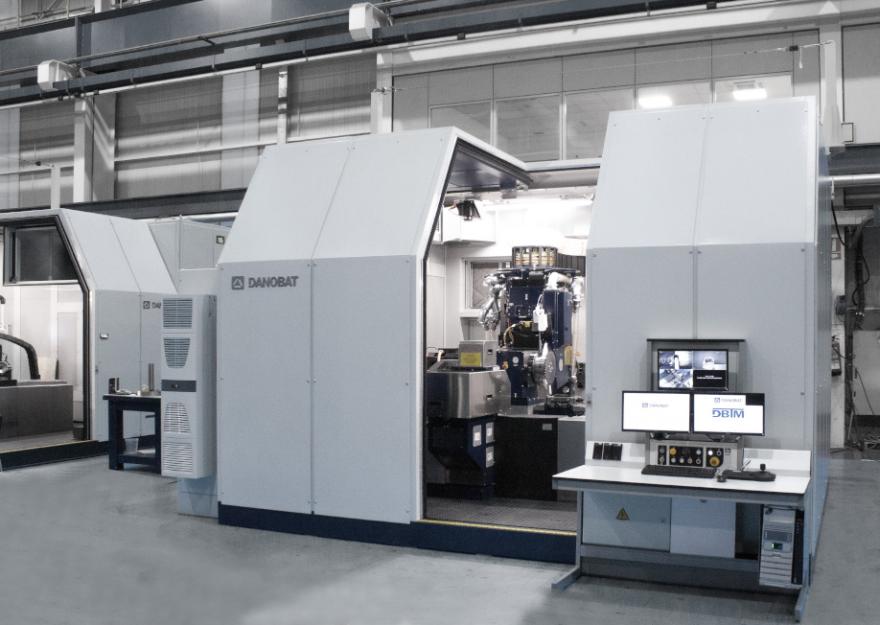

DANOBAT DANTIP CNC precision grinding machine Designed for the grinding of Blade Types of Aircraft jet engines and Gas turbine motor rotors. Rotors. 000 rpm. Thanks to the Digital Blade Measurement (DBTM) system, it can be rotated with high rotation speed and can be overcome within 0.025mm diameter tolerances.
DANOBAT DANTIP
Technicial Specifications |
|
| Grinding diameter
|
Ø410 – 1’500mm
|
| Stone head turning angle:
|
-10° to +200°
|
| Diameter of Stone:
|
Ø350 – 500mm
|
| Grinding length:
|
600 – 1’500mm
|
| Max. Workpiece length:
|
750 – 2’000mm
|
| Maks. İş parçası deviri: | 10 – 7’000 rev./min. |
| Control Unit : | Siemens 840SL |
